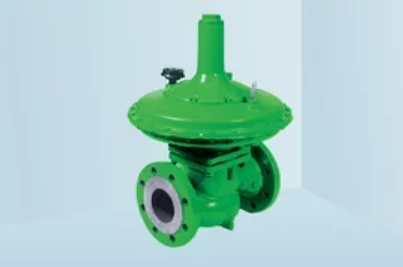

RMG 280/280H

The RMG 280/280H is a gas pressure regulator equipped with a spring-loaded measuring unit and pressure compensating valve. The gas pressure regulator is used for gas distribution.

Features and Benefits:

  • Simple servicing by removable cartridge (main valve body remains in line)
  • Balanced valve provides excellent control over full inlet pressure and working pressure range
  • Valve travel indicator
  • Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
  • CE registration according to PED
  • Max. inlet pressure pu max: up to 4.5 bar
  • Outlet pressure range Wd: 0.01 to 0.225 bar (depends on size)
  • Connection: Flanges DN 50, DN 80 and DN 100
  • Temperature range: -20 to 60 °C
  • All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
